A comprehensive, turnkey processing line for converting raw cassava tubers into finished, packaged garri. This system handles every stage from peeling to packaging, with a raw input capacity of 1.0-1.5 t/h and a finished garri output of 200-300 kg/h. The line includes a high-efficiency peeler, grater, hydraulic dewatering press, two (2) SS304 garri fryers, a vibration sieve for fineness, and an automatic 1-5 kg weighing and packing machine. All components are constructed from durable, food-grade SS304 stainless steel.
Product Description
- Product Details & Included Machinery

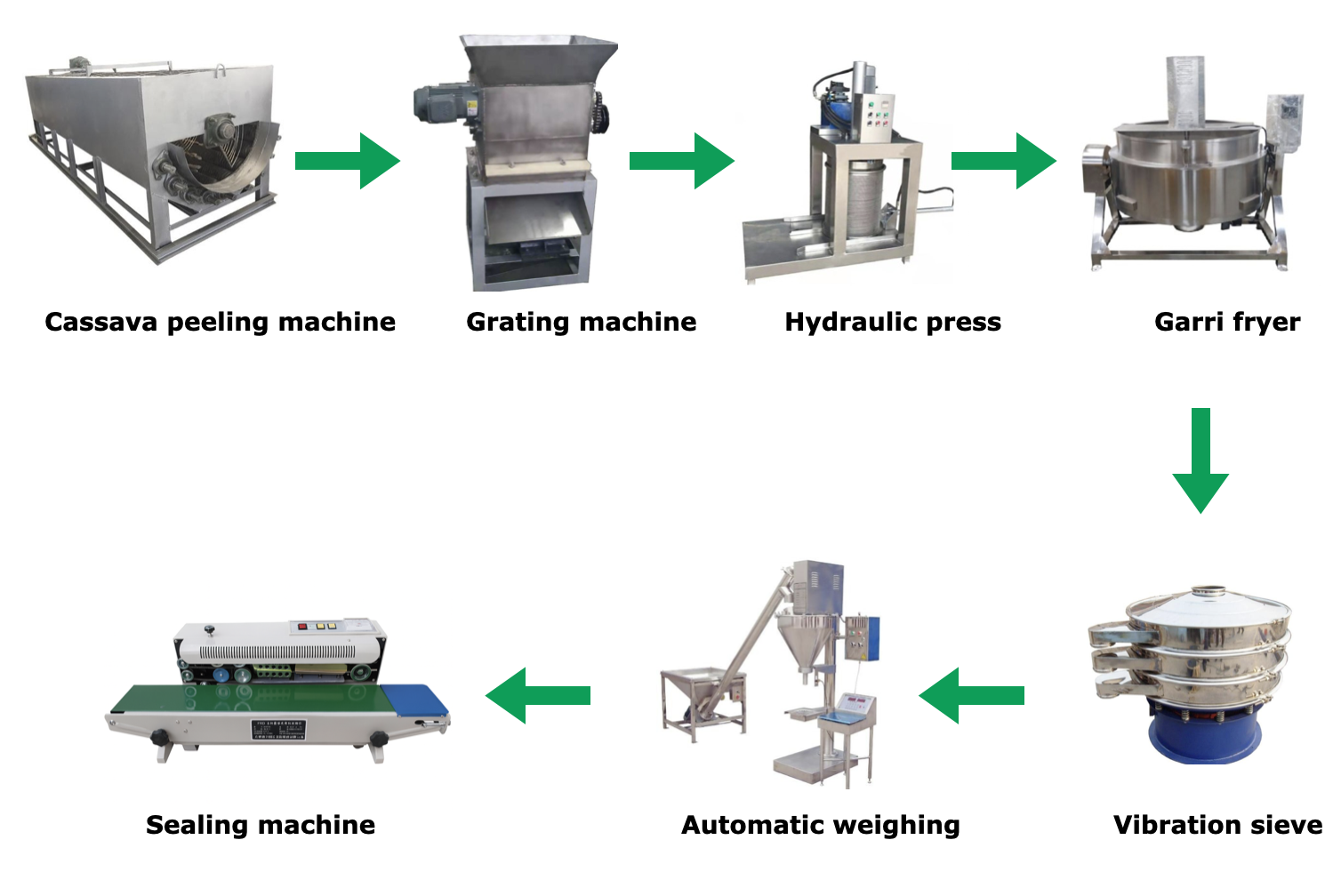

This production line includes the following 6 main components:
1. Cassava Peeling Machine (1 SET)
- Material: SS304
- Capacity: 1.0 t/h
- Power: 3 kW + 1.1 kW
- Function: Washes and peels cassava tubers with a high peeling rate, leaving a clear and smooth surface.
- Dimensions: 2600 * 1200 * 1300 mm
- Weight: 1200 kg
2. Grating Machine (1 SET)
- Material: SS304
- Capacity: 1.0 - 1.5 t/h
- Power: 5.5 kW
- Function: Grates peeled cassava into a fine mash.
- Dimensions: 900 * 650 * 1200 mm
- Weight: 300 kg
3. Hydraulic Press (1 SET)
- Material: SS304
- Power: 3 kW
- Barrel Diameter: 550 mm
- Function: Automatic dewatering of fermented cassava mash or cassava flour.
- Operation: Automatic
4. Garri Fryer (2 SETS)
- Material: SS304
- Capacity: 100-150 kg/h (per set)
- Power: 1.5 kW (per set)
- Heating Fuel: Gas / Diesel / Electric
- Function: Automatic mixing and frying of cassava pulp. Can add palm oil during frying to produce yellow garri.1
- Dimensions: 2000 * 1300 * 1400 mm
- Weight: 450 kg
5. Vibration Sieve (1 SET)
- Material: SS304
- Capacity: 500 kg/h
- Power: 0.75 kW
- Size: φ800 mm
- Function: Sieves the final product to ensure uniform fineness.
6. Automatic Packing Machine (1 SET)
- Material: SS304
- Packing Range: 1 kg - 5 kg
- Power: 2.2 kW
- Function: Automatic weighing, filling, and packing. Includes sewing machine for bag closure.
- Weight: 300 kg
